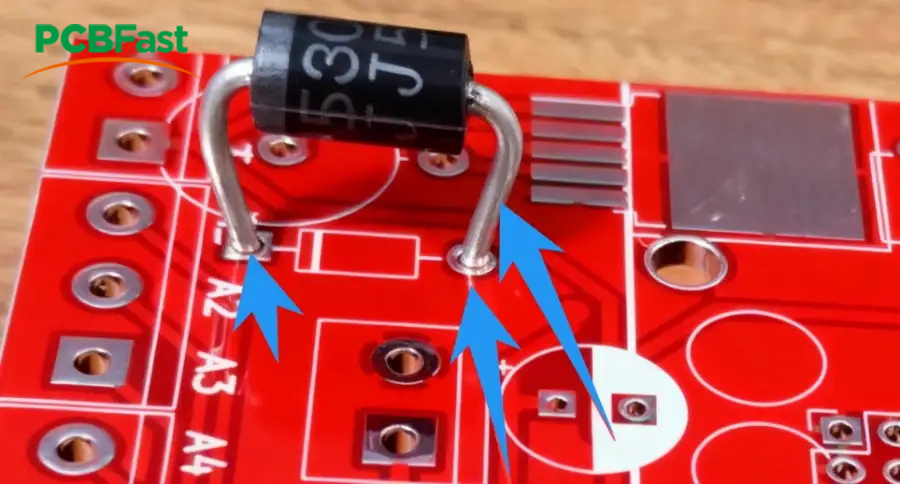

If the pin spacing of the plug-in component is not consistent with the hole spacing of the PCB, what should I do?

This situation usually occurs because the pitch of the components does not match the hole spacing in the PCB design.



You can consider replacing the components. If the components are already fixed, you can modify the PCB and re-manufacture it. We do not recommend forcing the soldering. Although it might be possible to install them, the components will be suspended or have uneven force distribution, which can easily lead to loose solder joints or pin misalignment.
